Lead Jacketed, Paper Wire, Tar Sealed, Bakelite Terminal Block |
|||
Initial Removal July 10, 2009 |
|||

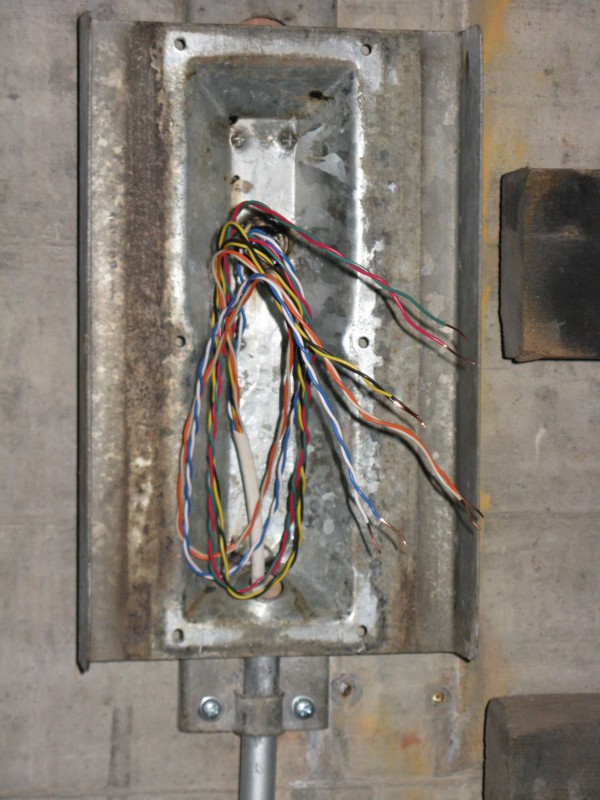

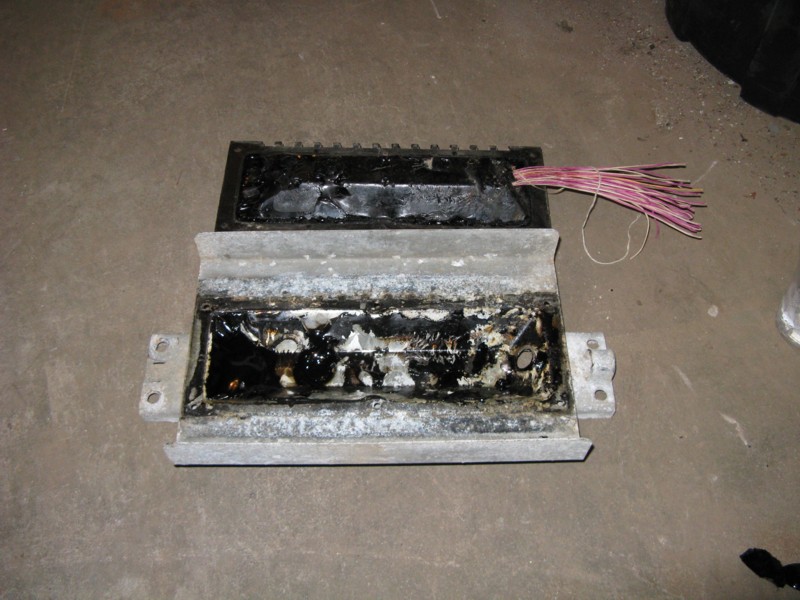

| Terminal block opened after removal from wall. |

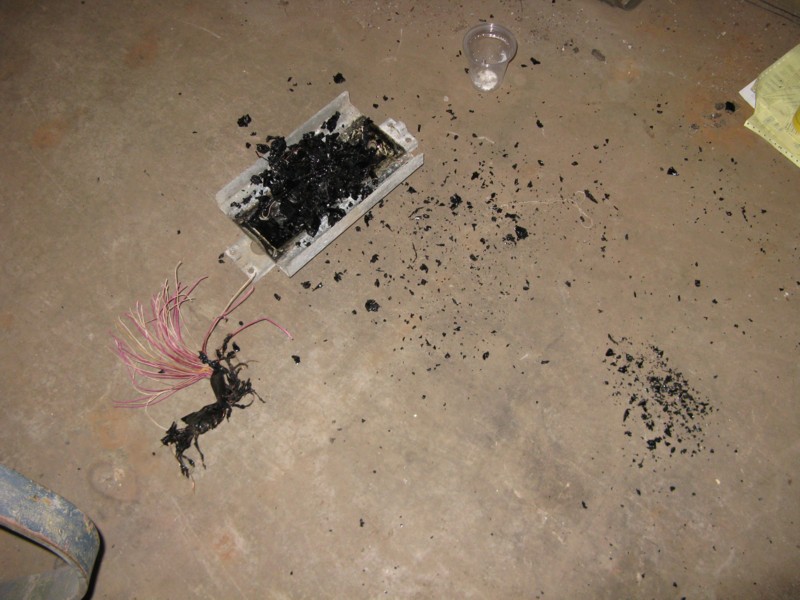

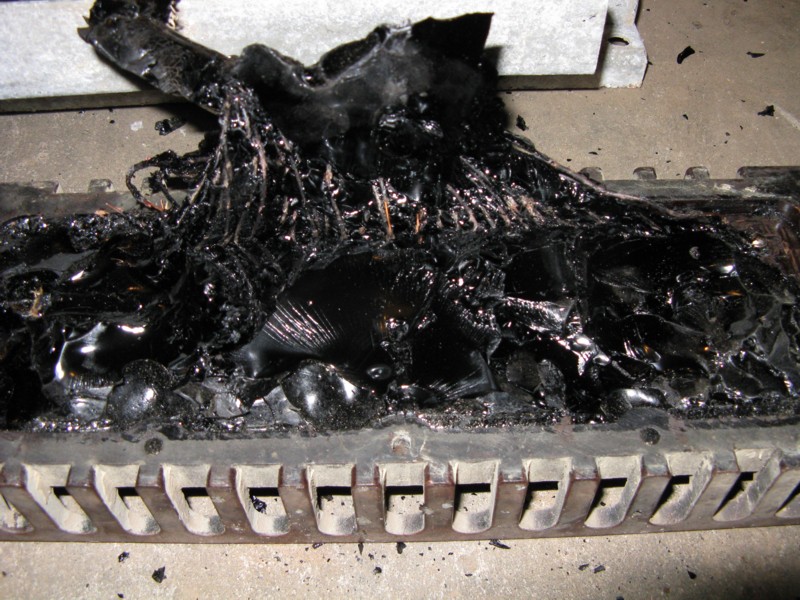

Tar removal | More tar removal | Bakelite block with one post removed. |
 |
 |
 |
 |
Further cleanup July 13-16, 2009 |
|||

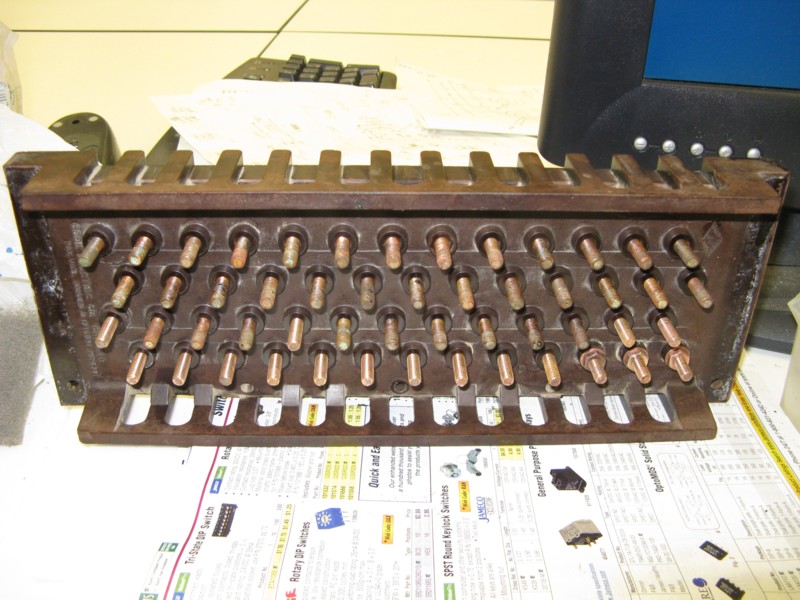

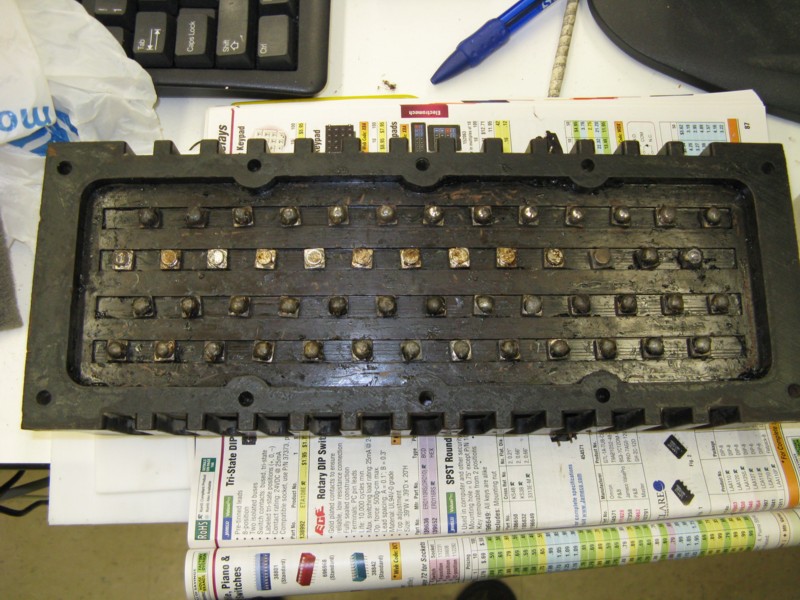

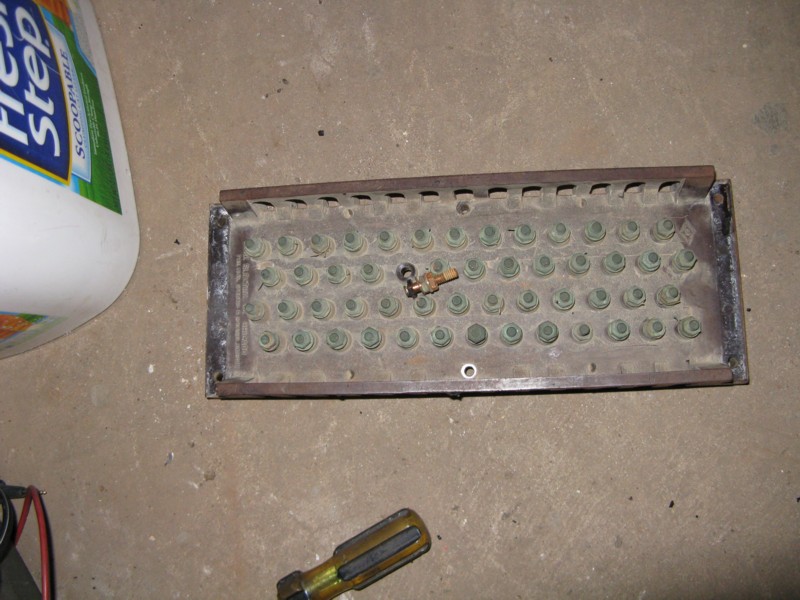

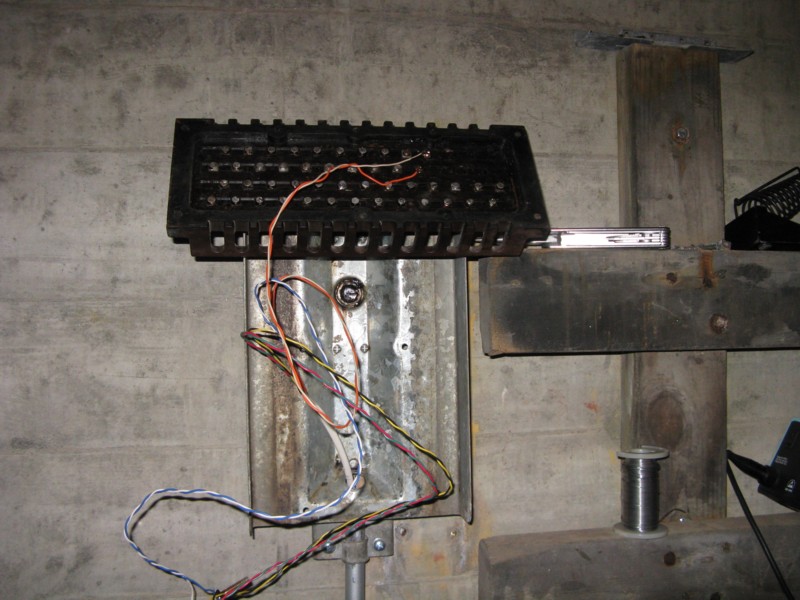

| Backside of block, no tar, some wires desoldered |

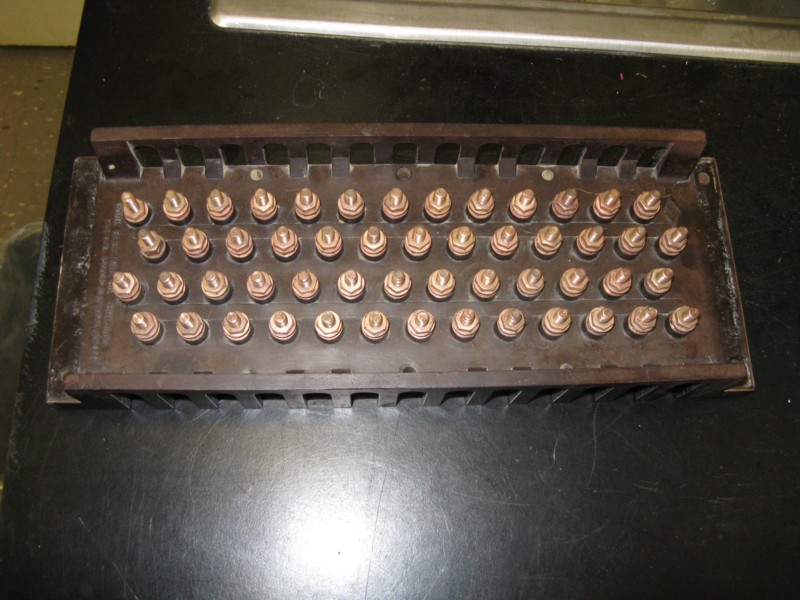

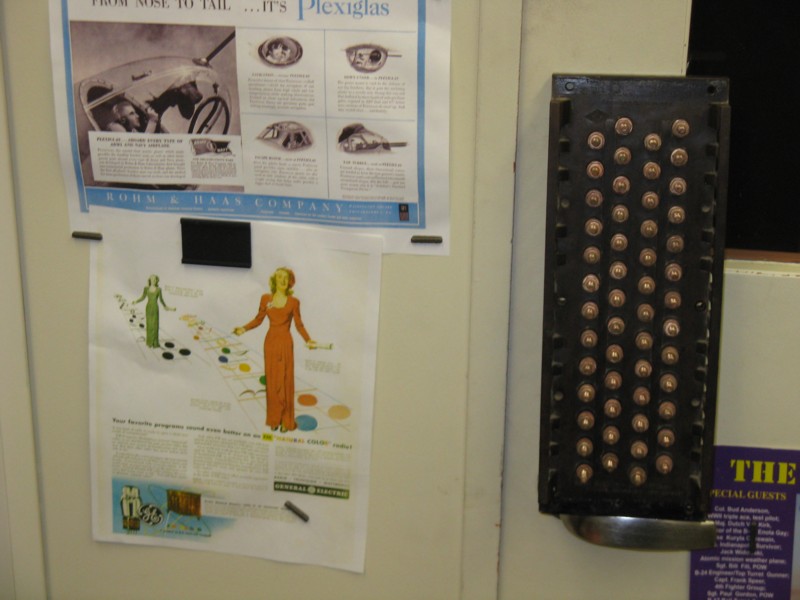

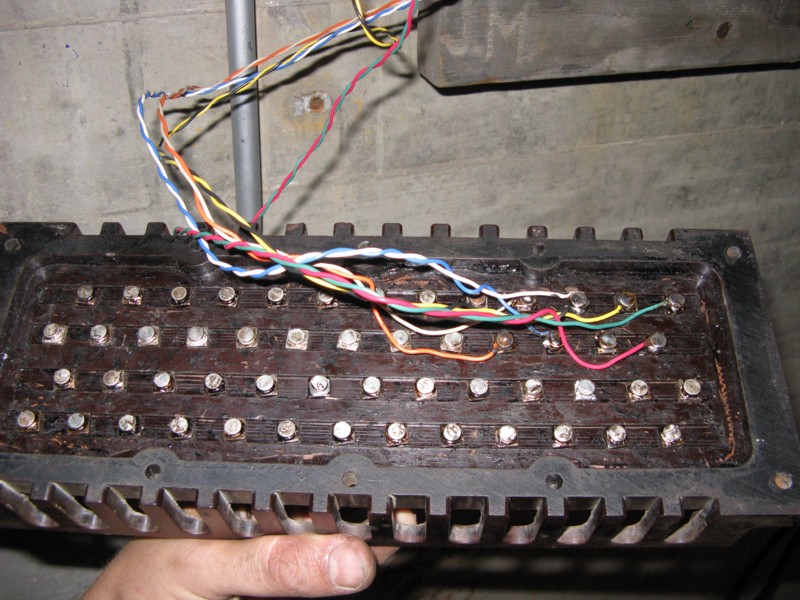

Front of block, some posts & hardware cleaned |
Front of block, some posts & hardware cleaned |

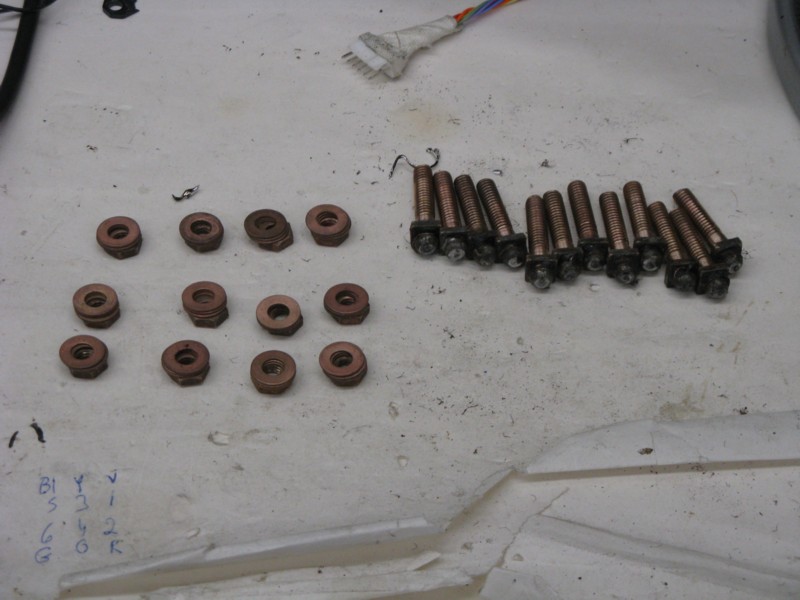

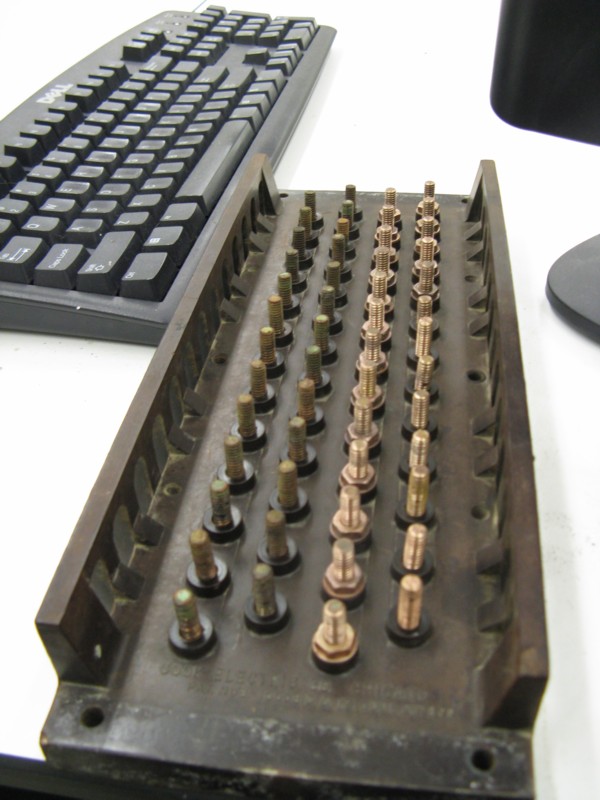

Posts & hardware. Block has 52 posts, 104 nuts & 156 washers |
 |
 |
 |
 |

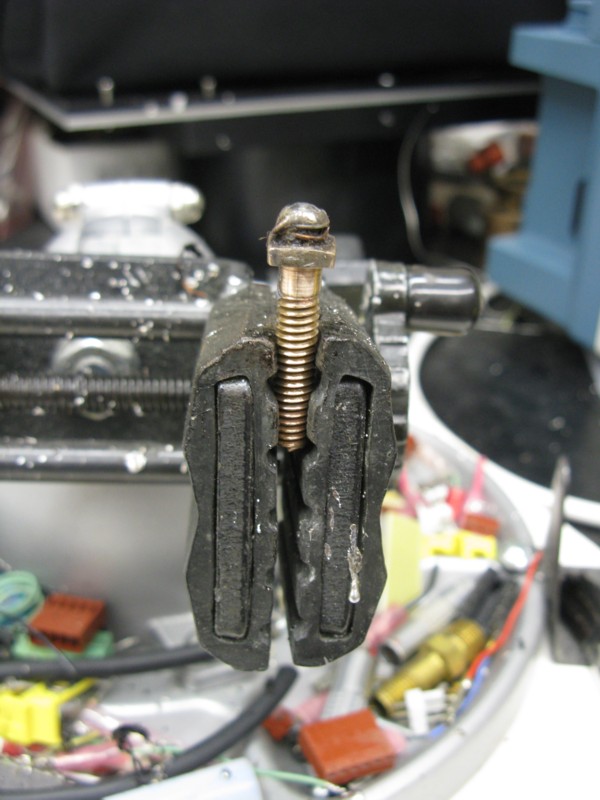

| Post before desoldering wire and tar. |

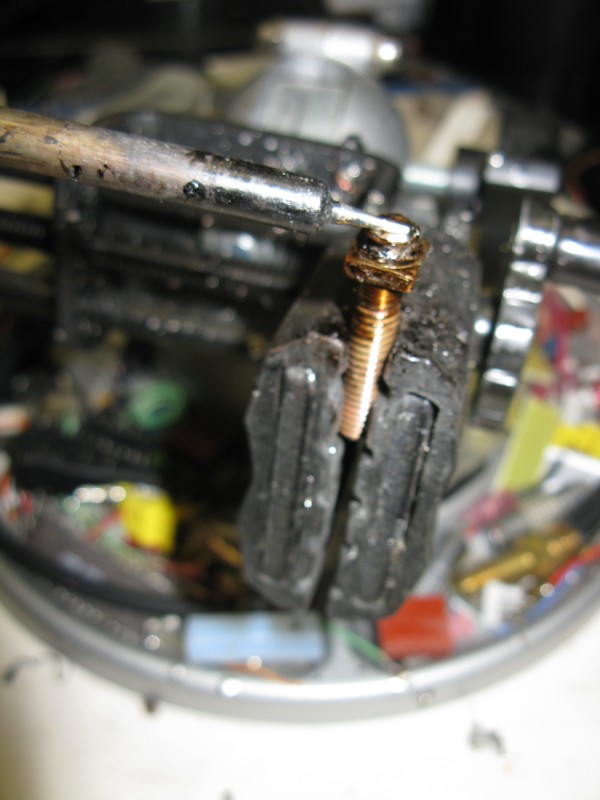

Post during desoldering wire and tar. |

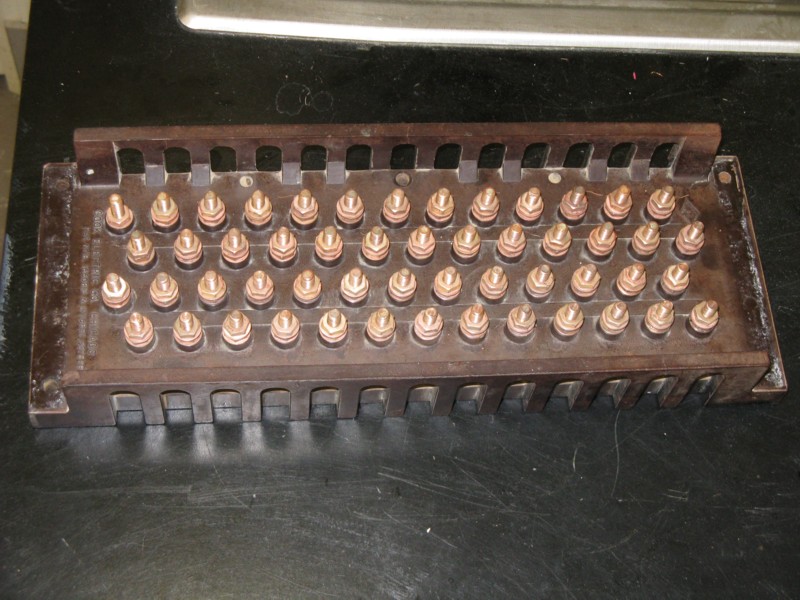

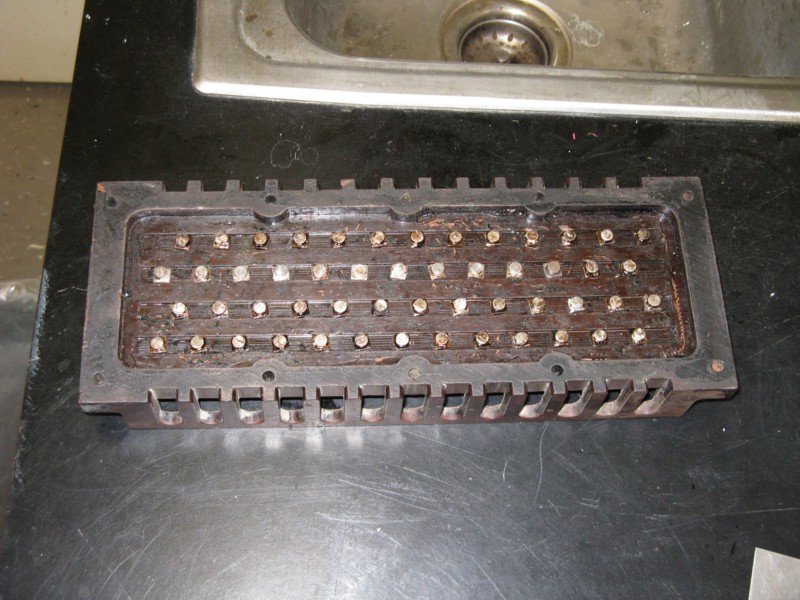

Front of block all hardware initially cleaned. |
Front of block all hardware initially cleaned. |
 |
 |
 |
 |
| Back of block all hardware initially cleaned. |
Front of block all hardware initially cleaned. |
(FMHA photo) North Gun Room where terminal block & rack came from. |
South Gun Room where terminal block will be mounted. |
 |
 |
 |
 |
Installation in South Gun Room July 24-26, 2009 |
|||

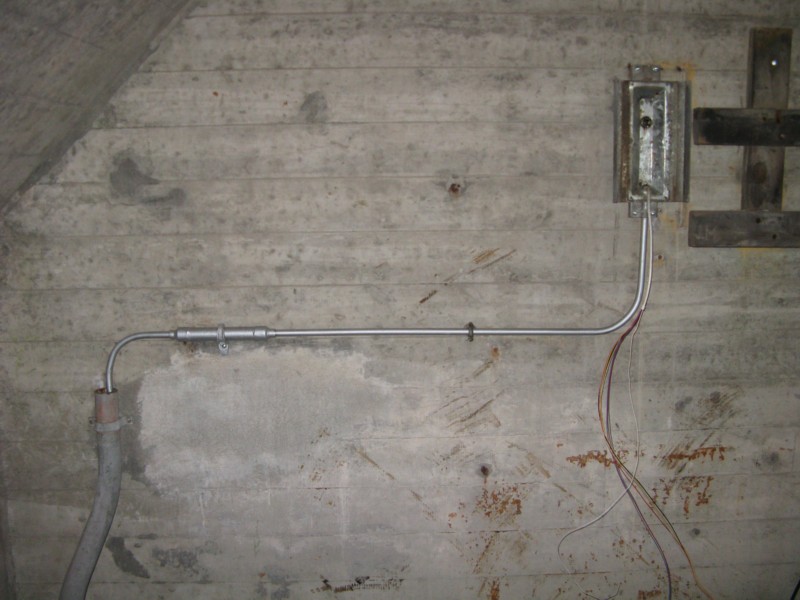

| Completed conduit & terminal block housing |

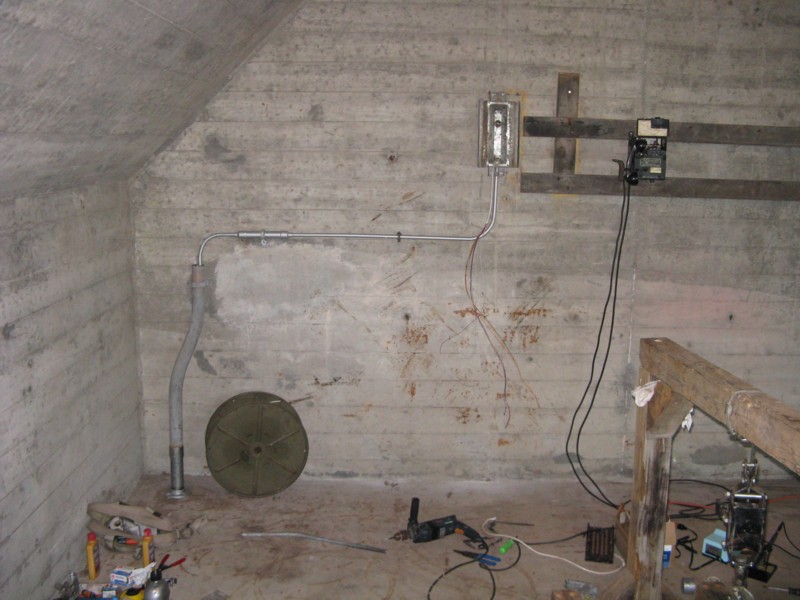

Wire and tools needed around project |

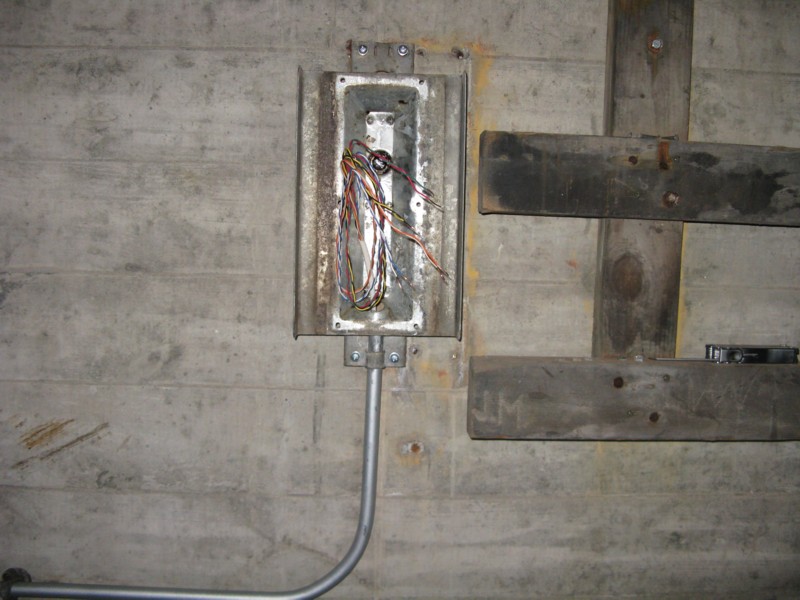

4 pair cable in terminal block housing |
close up of wires in terminal housing |
 |
 |
 |
 |

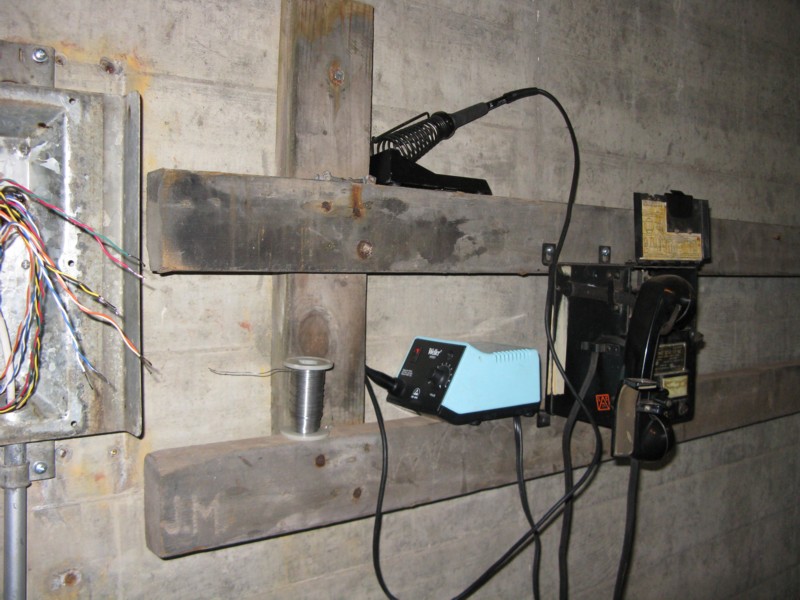

| Preparing to solder pairs to terminal block |
1st pair soldered | All 4 pairs soldered | Completed conduit & terminal block |
 |
 |
 |
 |

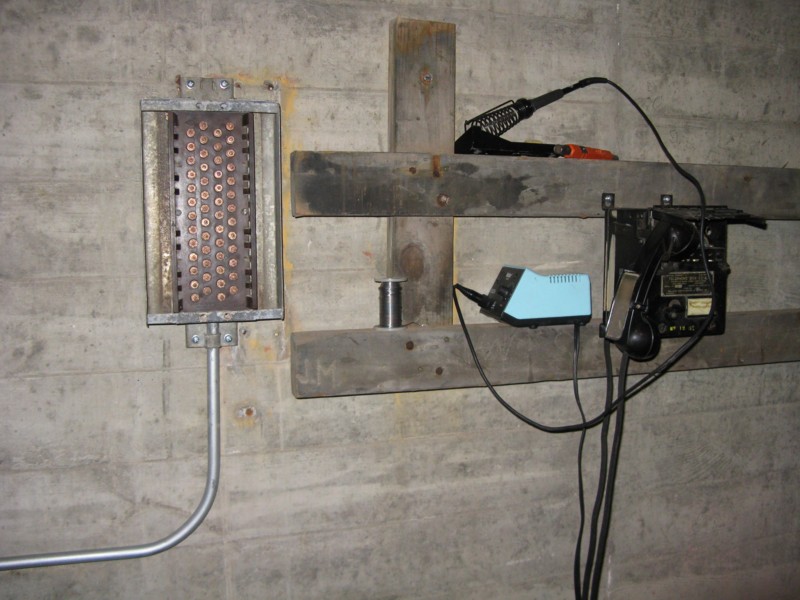

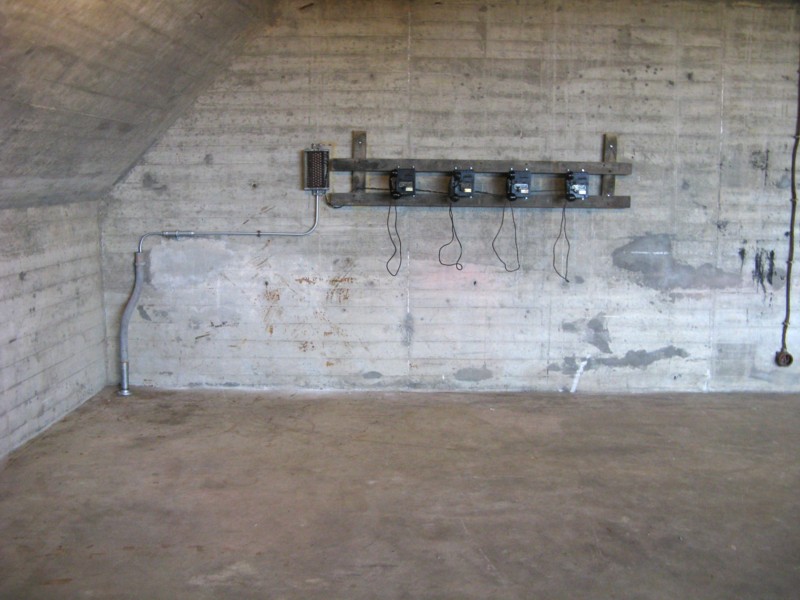

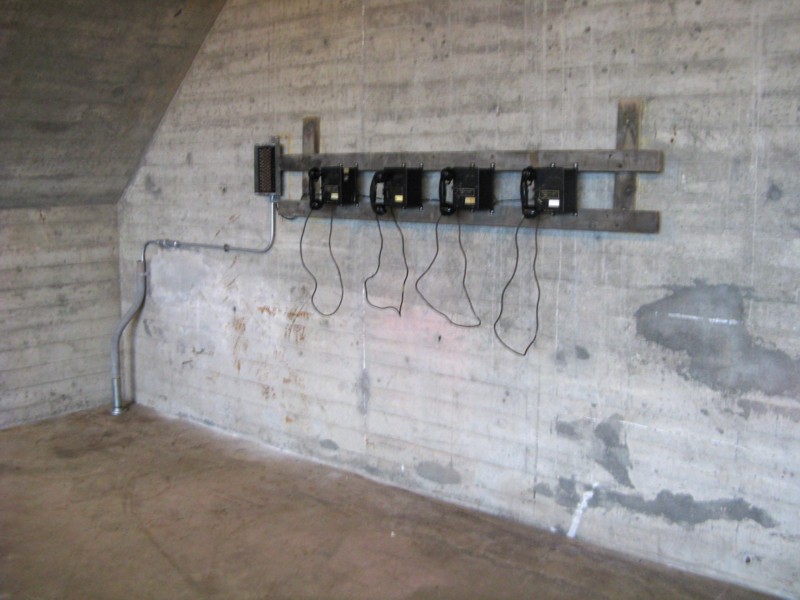

| Completed conduit, terminal block & EE-91 rack |

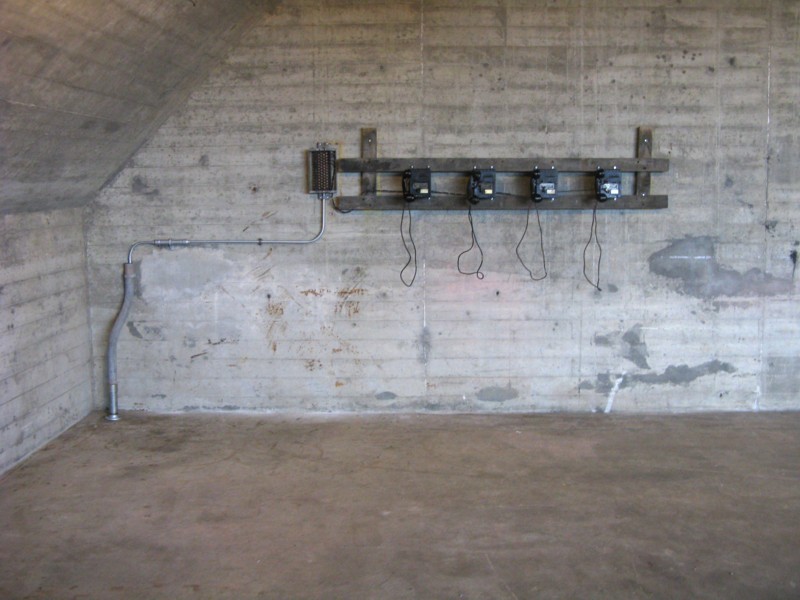

Completed conduit, terminal block & EE-91 rack |
Completed conduit, terminal block & EE-91 rack |

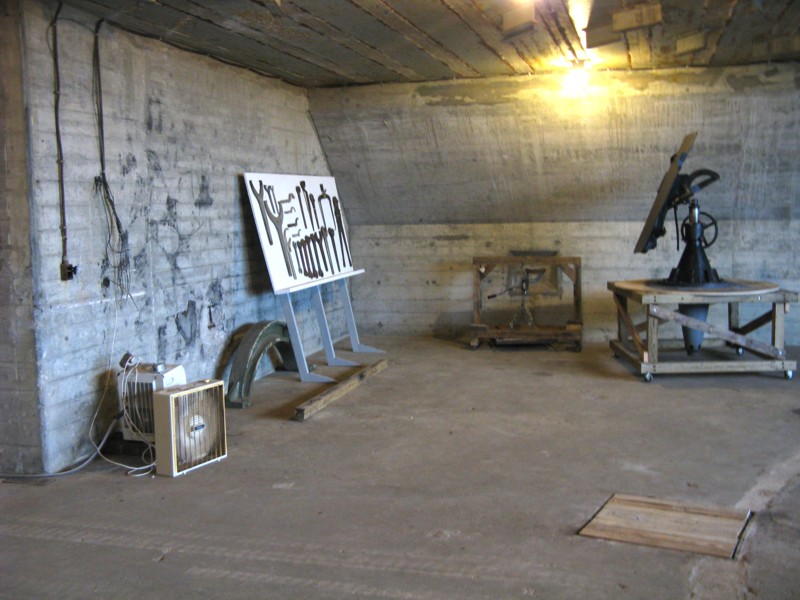

South Gun Room dispays. Flak38 & 12" gun tools |
 |
 |
 |
 |

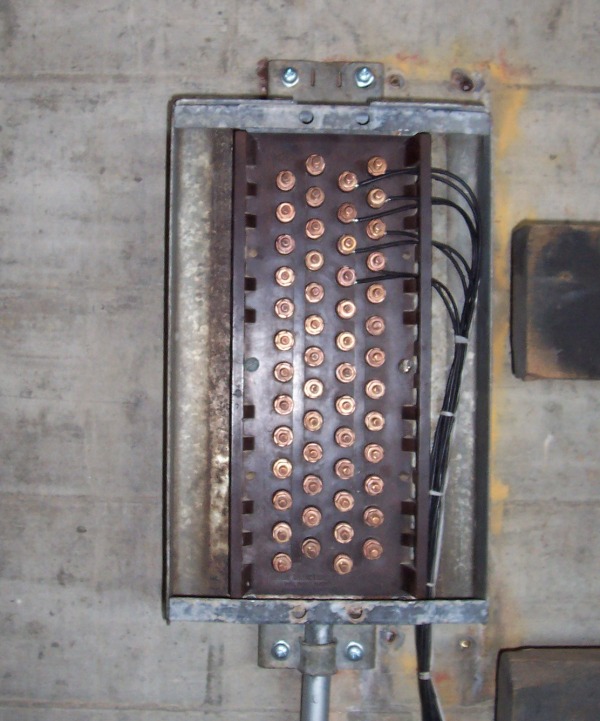

| (FMHA photo) "Jason's Work" |

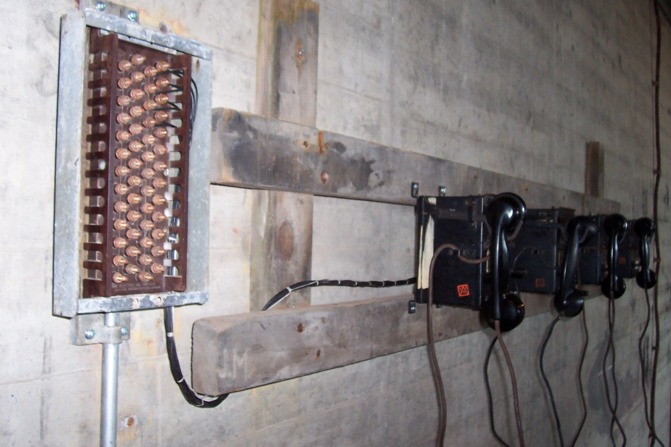

(FMHA photo) "Phone Lines" |
July 25th, 2009 sunrise | |
 |
 |
 |
|
