Commo Restoration |
|||

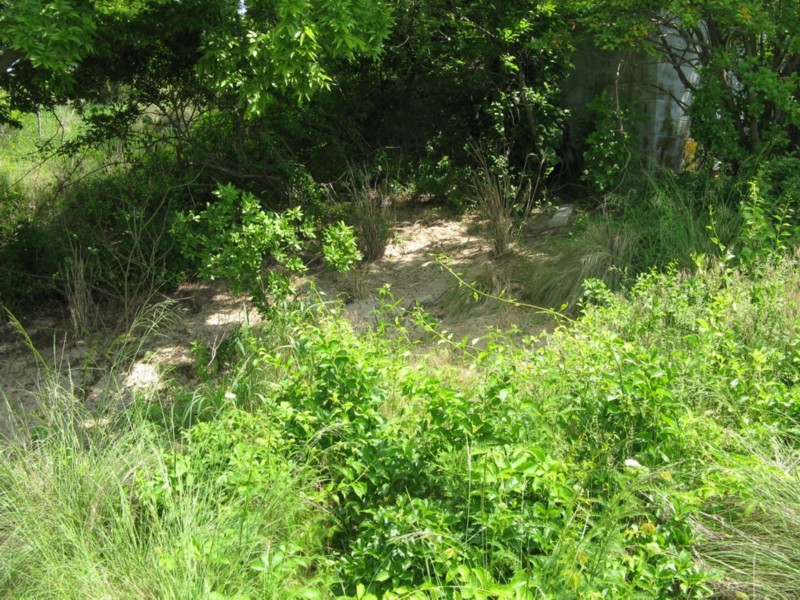

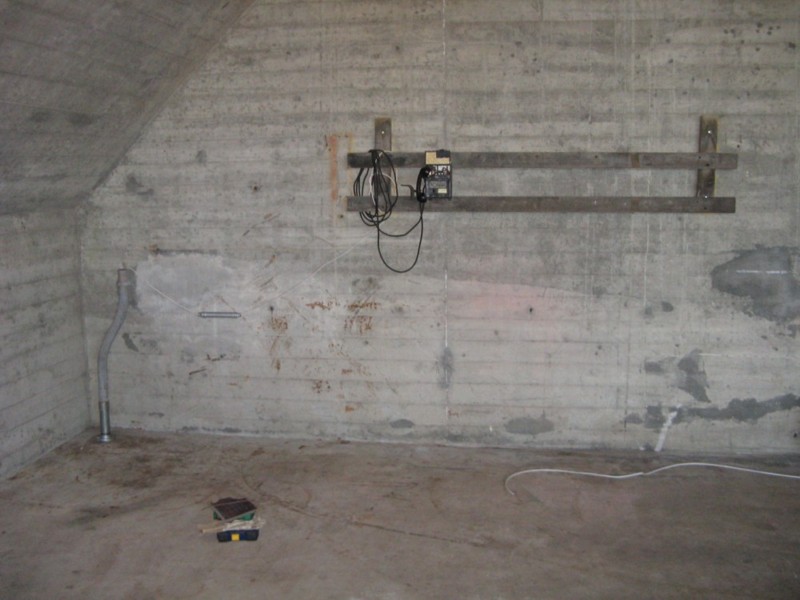

Outside Battery 519. Compare photos below to this one |
|||
| Completed trench Leading to Muffler Gallery |

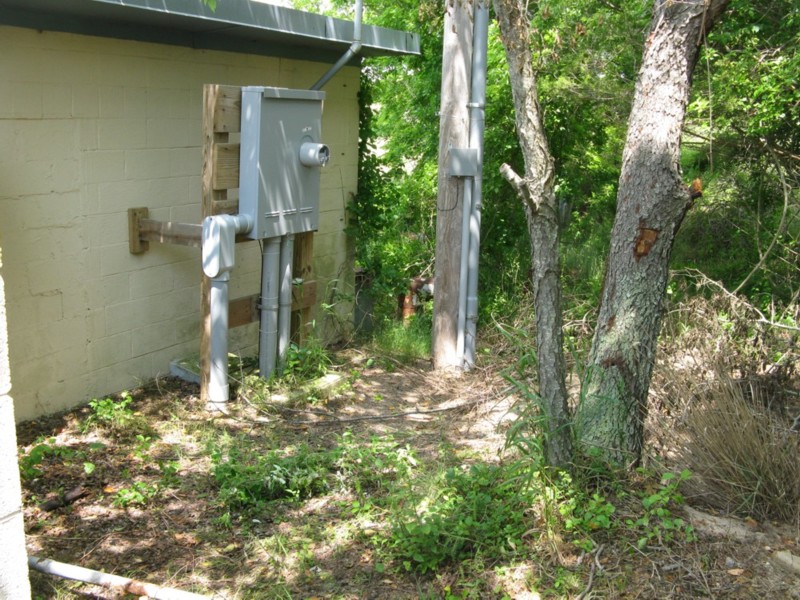

Completed trench Leading to Power Pole |
Completed trench Leading to Power Pole |

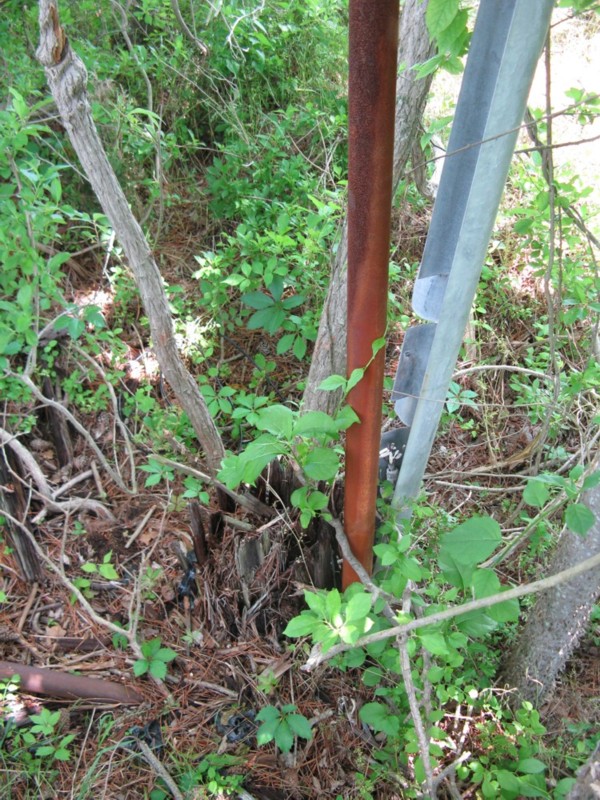

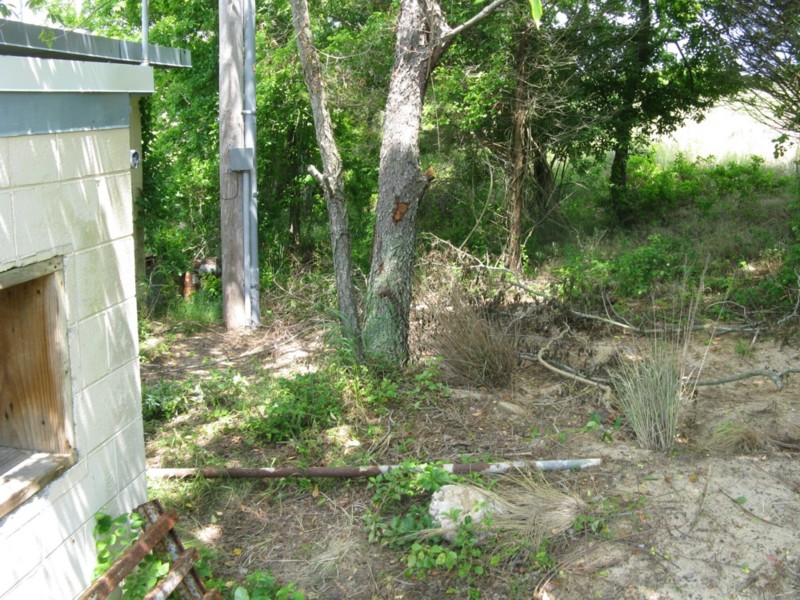

View of old pole remains. Remains highlighted in large image |
 |
 |
 |
 |

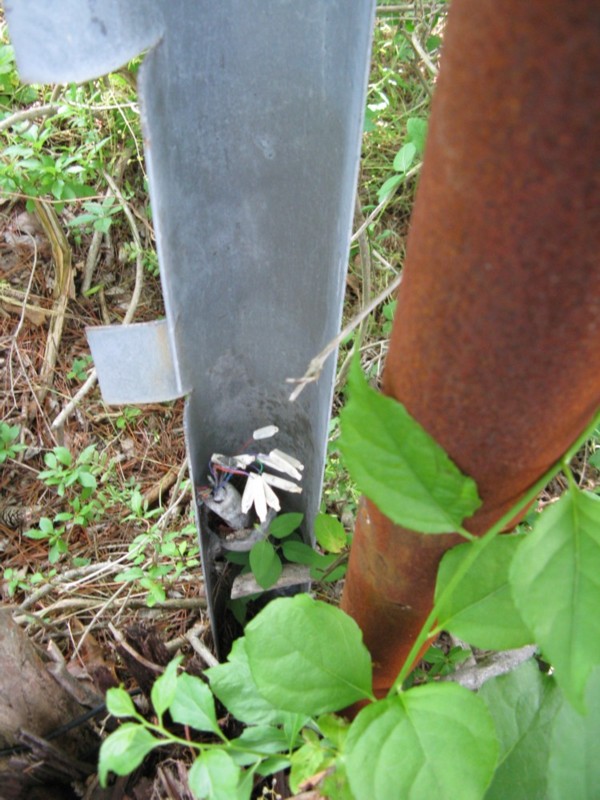

| Closeup of remains of old pole. Modern cable went to a lead splice. The rusted pipe is the old end of the conduit we rerouted. |

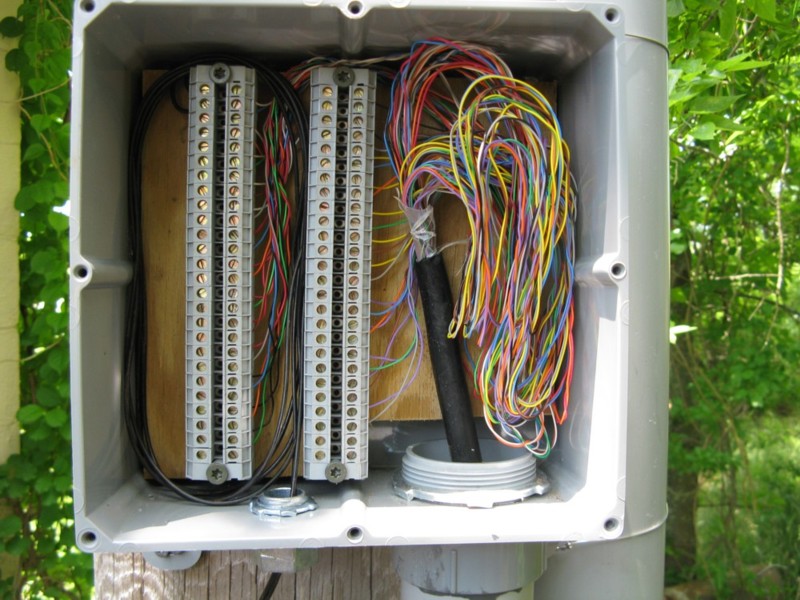

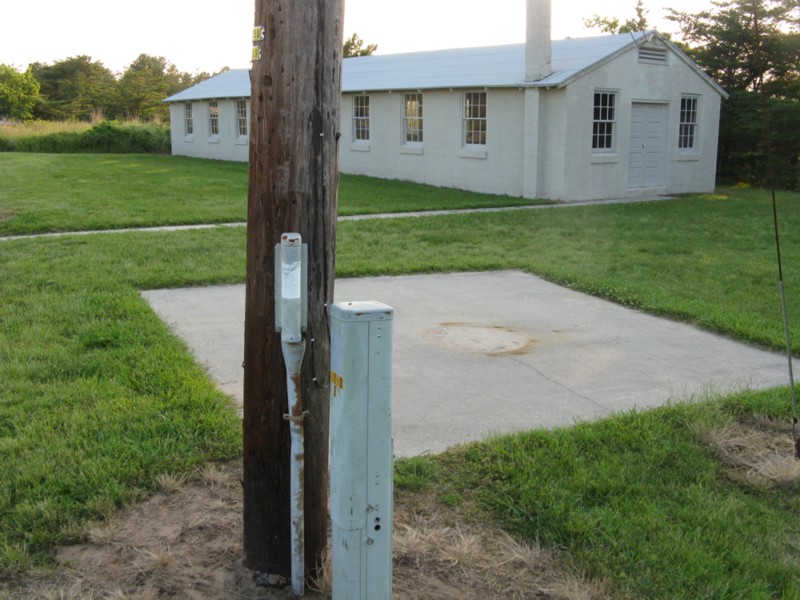

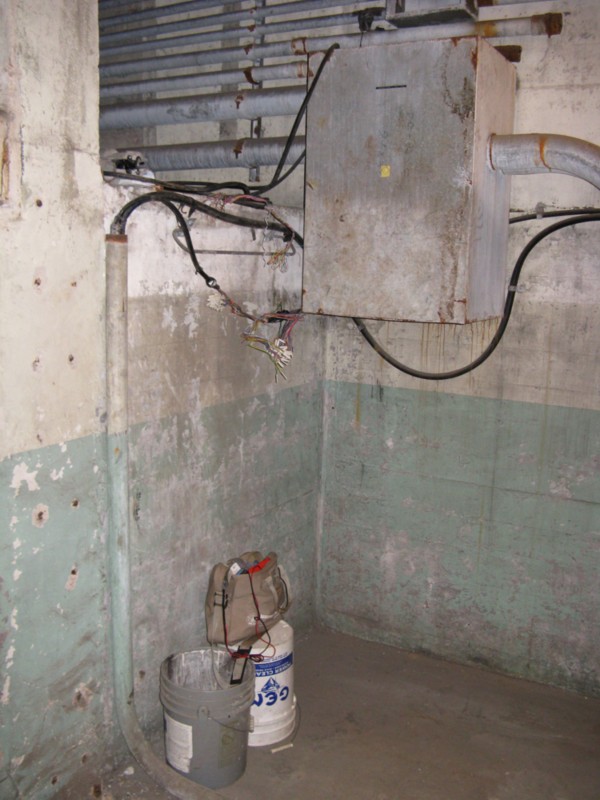

Closeup of inside of new terminal box on power pole |
Part of the commo project in the barracks area |
|
 |
 |
 |
 |
Inside Battery 519 Pulling new cable |
|||
| Pulling cables from pit in south hall to pit under Terminal block 2 |

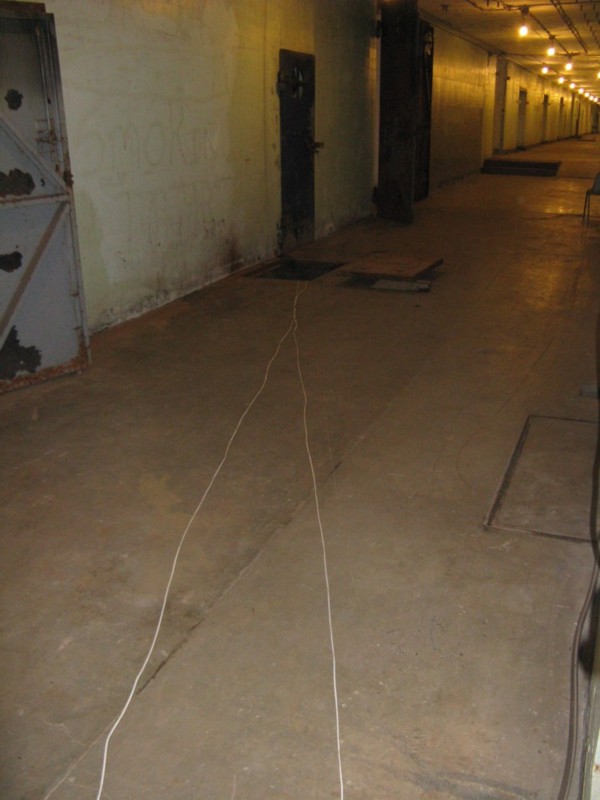

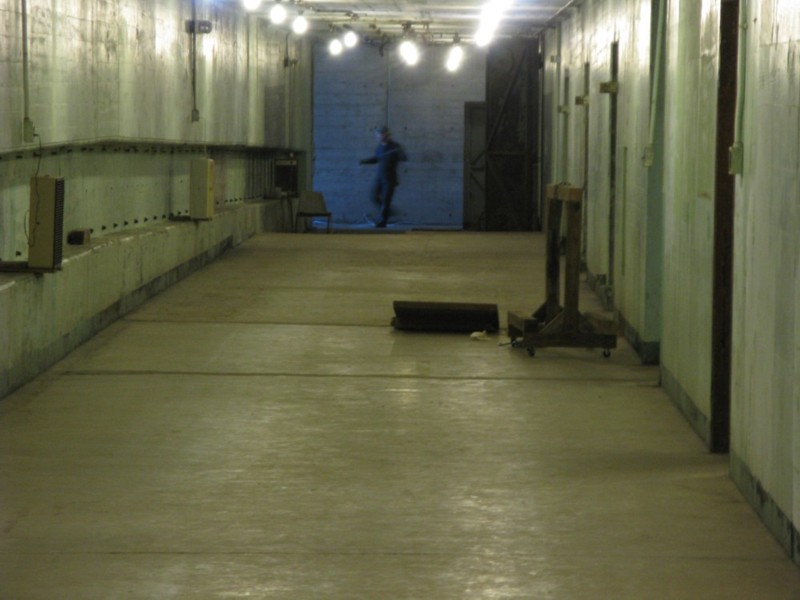

Zoom in view in the hallway while pulling new cables |

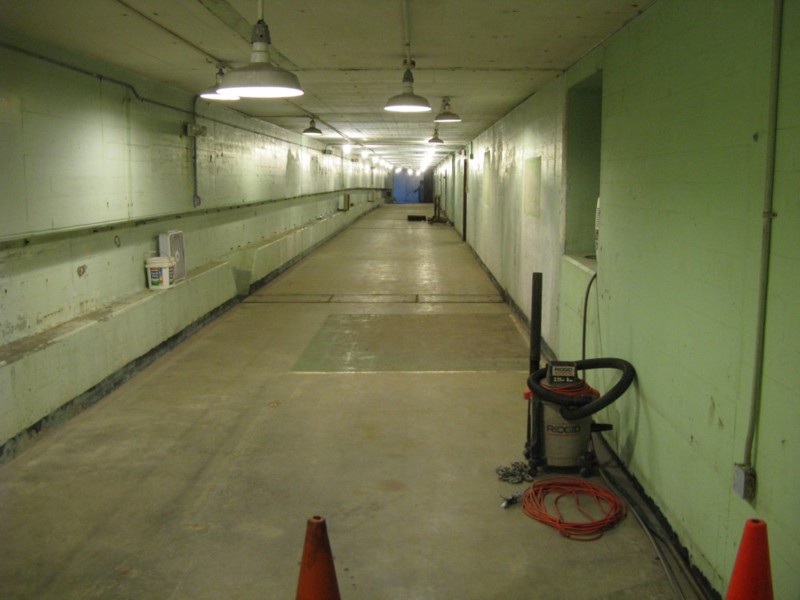

Zoom out view in the hallway while pulling new cables |
|
 |
 |
 |
|
North Central Signal Handhole and Terminal Block 2 |
|||

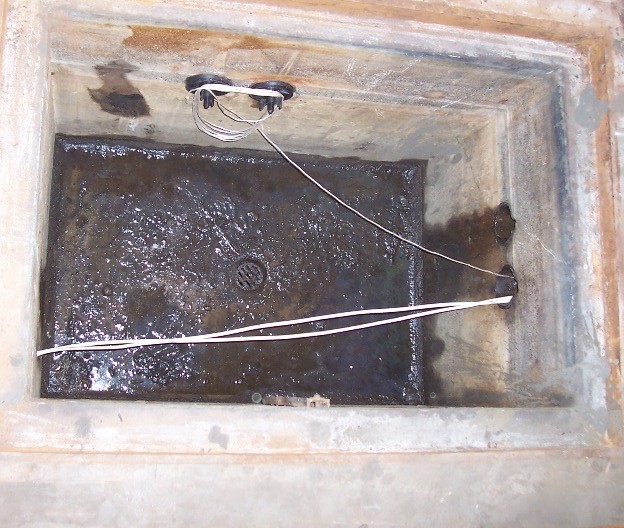

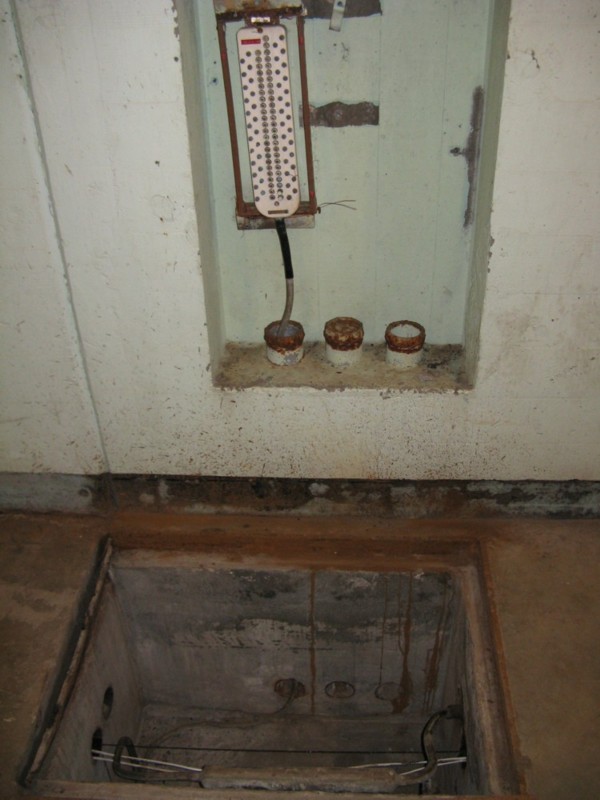

| Pit under Terminal block 2 just north of central hallway steps |
Terminal block 2 in recess with pit just under it. |
Plate in place on pit under Terminal block 2 |

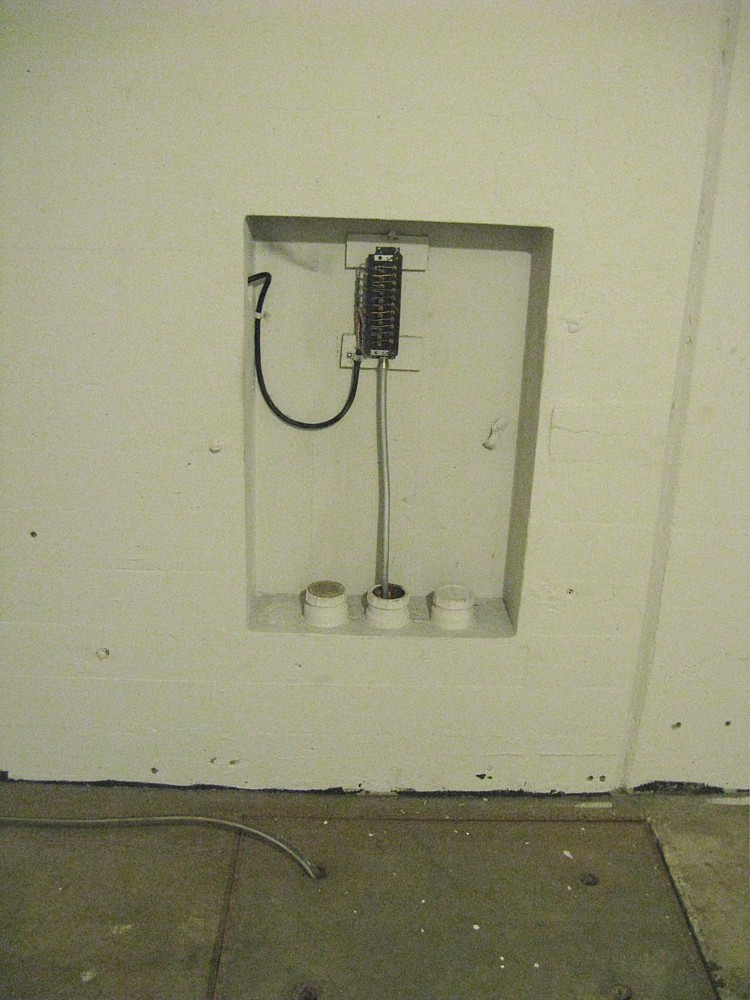

Terminal block 2 rewired 12-12-2009 |
 |
 |
 |
 |
South Central Signal Handhole |
|||

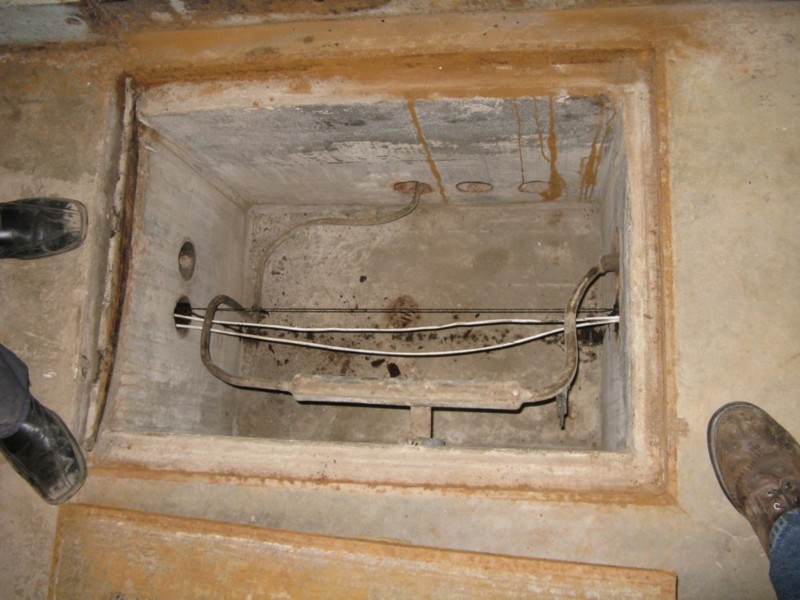

| Commo pit just south of latrines |
Commo recess and pit just south of latrines |
 |
 |
South Signal Handhole |
|||

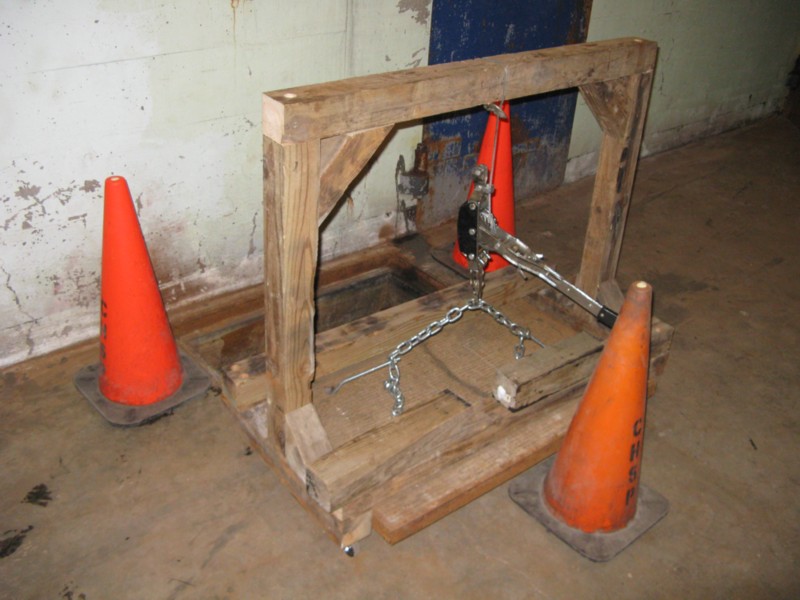

| South hall commo pit | John's plate lifter over south hall commo pit |
||
 |
 |
||

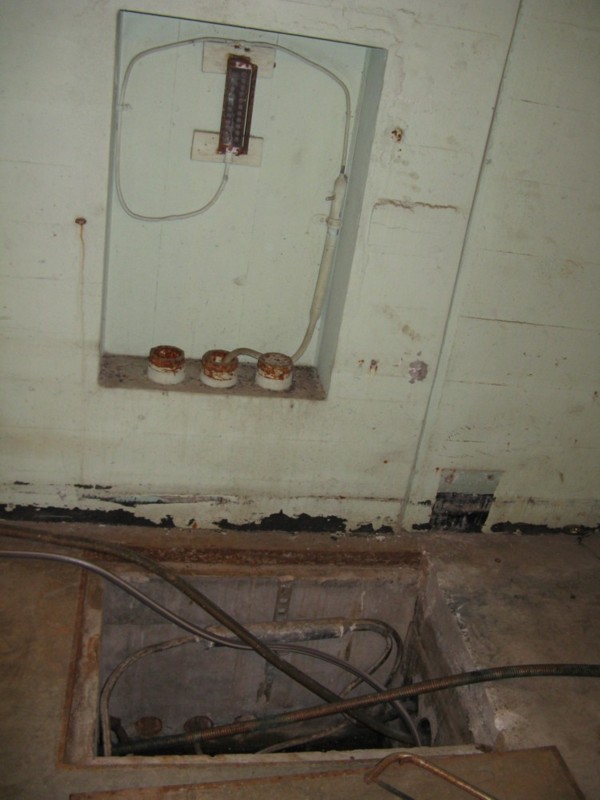

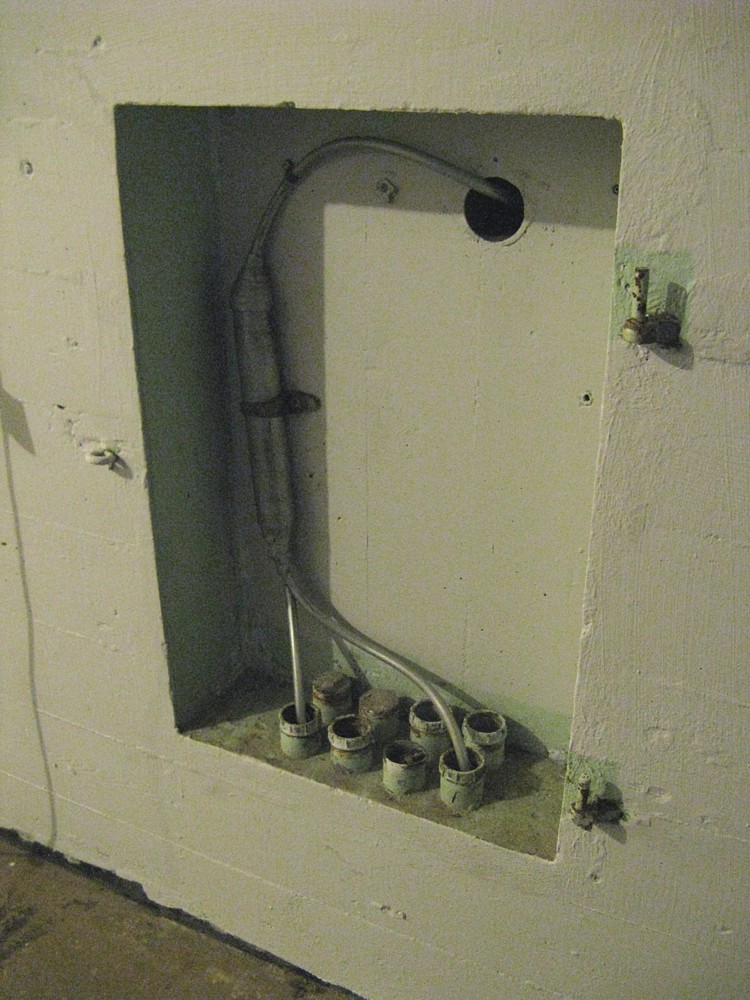

South Wall Signal Recess |
|||

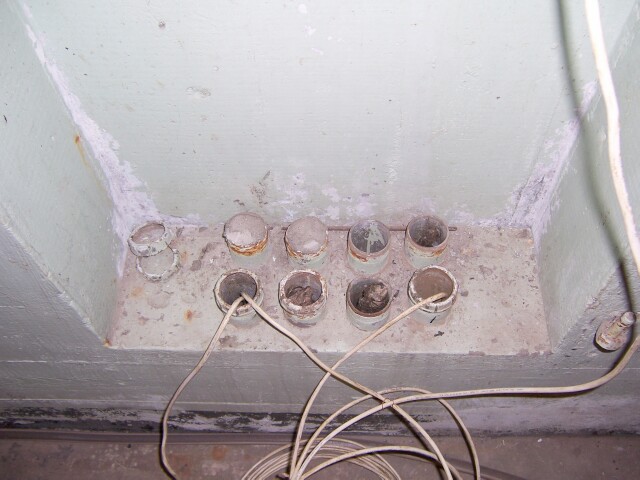

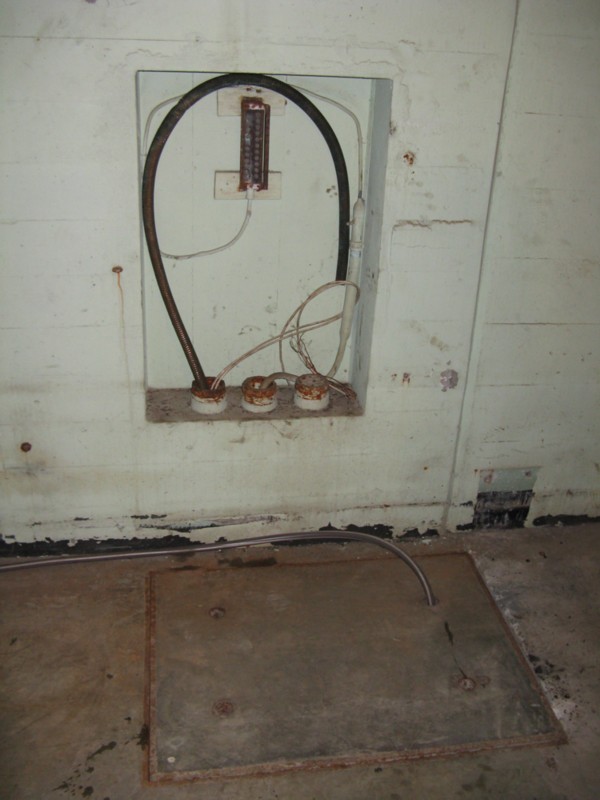

| Cables in recess After June 2009 Commo work |
Interpretive Display December 12th, 2009 |
||
 |
 |
||
| Diagram of conduits in recesses. | |||
| |||
South Gun Room and Muffler Gallery |
|||

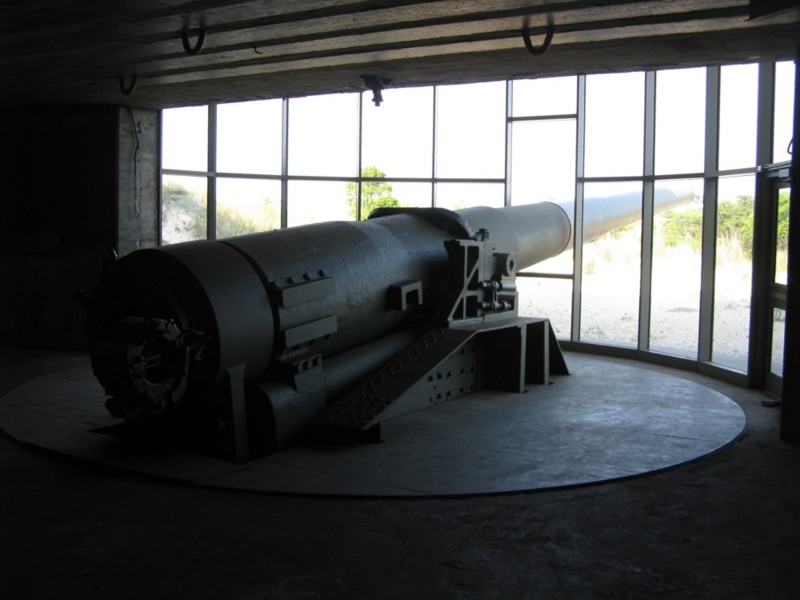

| 12"/50 cal in south gun room | EE-91 rack in south gun room | Conduit and modern cable in muffler gallery |
|
 |
 |
 |
|
