TS-9 Variations

TS-9 is the handset for WWII U.S. Amry signal Corps Field telephones, SwitchBoards
and with different switch and cord arrangement they were designated TS-15 and used for radio applications.
TM-11-5965-271-50(dated 1962) Lists the following types of TS-9s
TS-9-A TS-9-J TS-9-K

(grouped together, apparently all based on W.E. design)
(TS-9-W based on photos is not W.E. But TS-9-F,M,R,W,AJ,AN,AP are.)
TS-9-F, TS-9-N, TS-9-O, TS-9-P, TS-9-Q, TS-9-R,
TS-9-T, TS-9-U, TS-9-V, TS-9-W, TS-9-AA, TS-9-AC,
TS-9-AE, TS-9-AF, TS-9-AJ, TS-9-AK, TS-9-AL, TS-9-AM,
TS-9-AN, TS-9-AP, TS-9-AQ

TS-9's pictured below are all in use on EE-8 field phones.
For more info on EE-8's see Joe Stevens's page.
There is also a slowly growing EE-8 page on this site.
Receiver and Transmitter refer only to what was written on the part.
Not necessarily the part number.

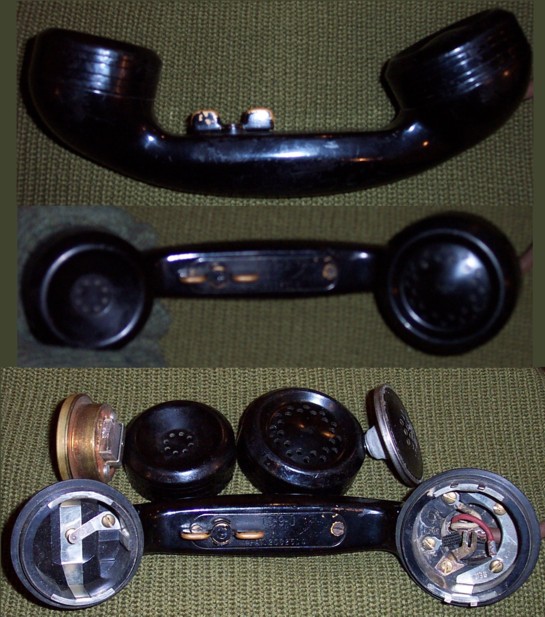

TS-9-J, Pat. 2002504
Manufacturer:
Automatic Electric Co
Receiver:
A.E.Co Type 41 ZL 051896
Transmitter:
A.E.Co 41 D-38309-4 07

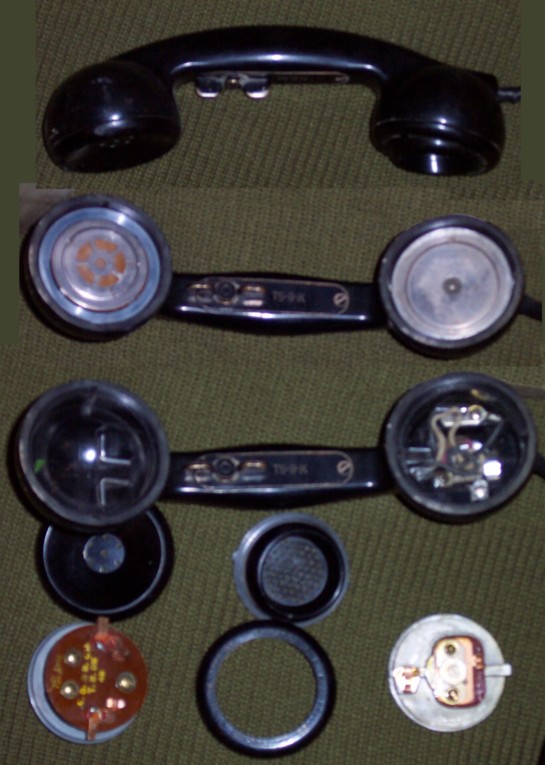

TS-9-K
Manufacturer:
Kellogg Switchboard Supply Company
Chicago U.S.A.
Receiver:
K.S.S.Co T.S.9K 45 May 1947
Transmitter:
Alcoa 5

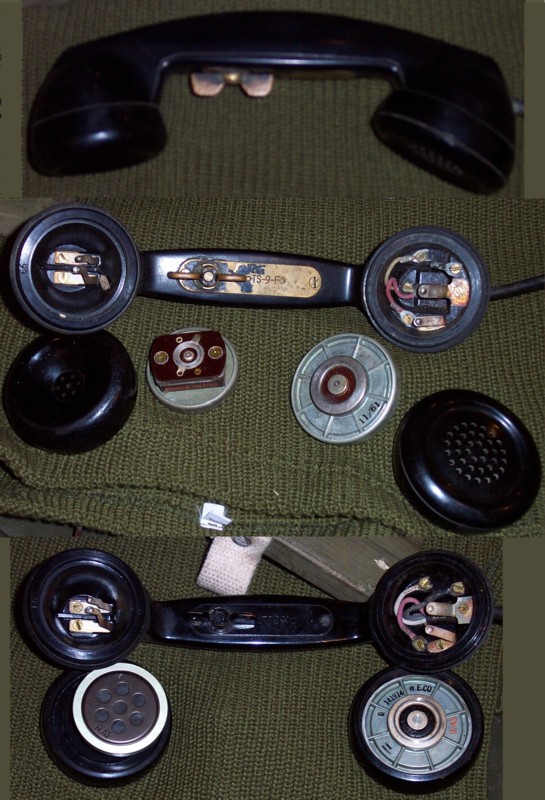

TS-9-F (or M)
Manufacturer:
Western Electric Co
Receiver:
W.E.Co D141915
Transmitter:
(F1) D141914

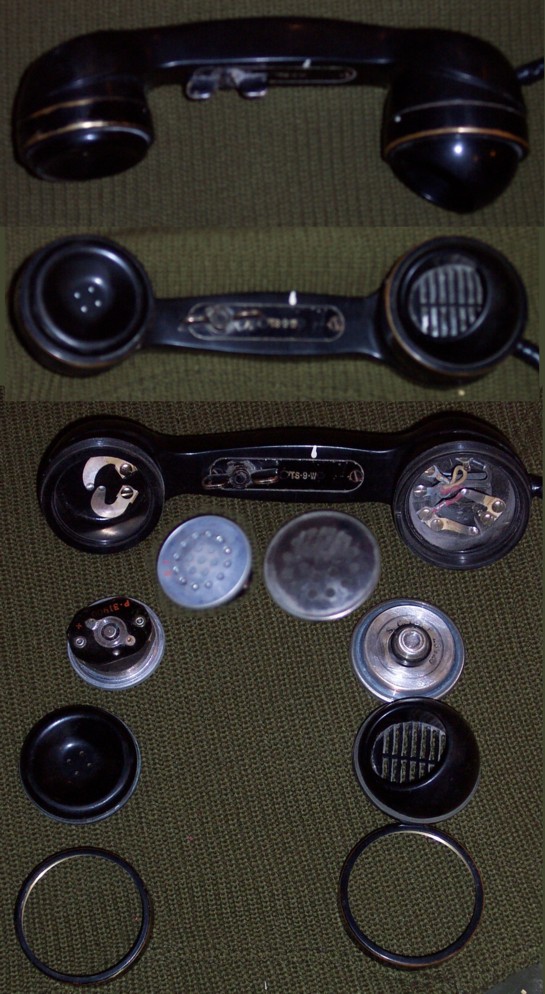

TS-9-W
Manufacturer:
S.C. Co
Receiver:
(G1) P-31900

Transmitter:
S.C. Co P28920

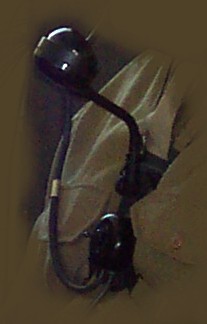

Same as TD-1 Chest Set

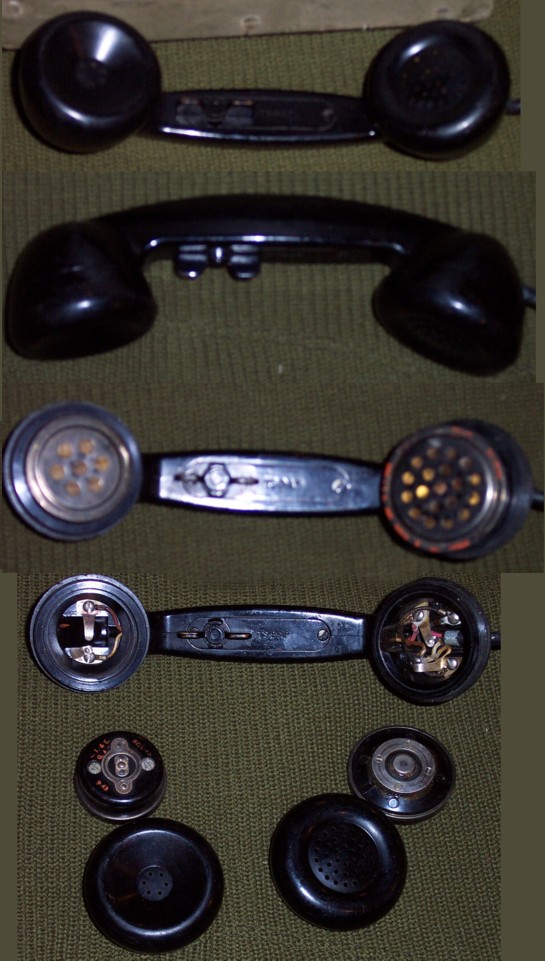

TS-9-AP
Manufacturer:
Conn. Tel & Elec. Div BAL Inc
Receiver:
C.T.&E. G.A.I 9220-43? 9-43
Transmitter:
3200-A3 16-44

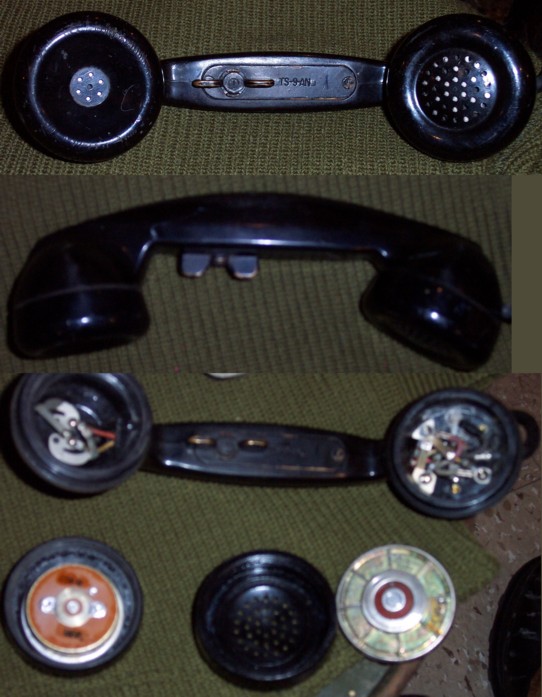

TS-9-AN
Manufacturer:
ConnTelco
Receiver:
256 Ohm
Transmitter:
ConnTelco 5596

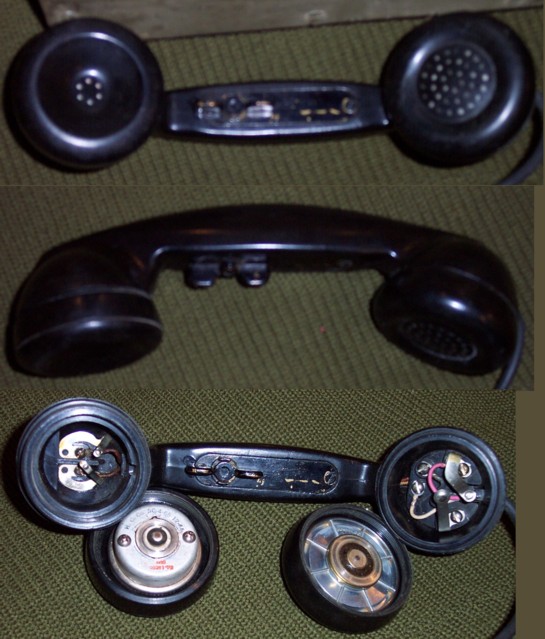

TS-9-R
Manufacturer:
H.C.Co?
Receiver:
H.C.Co SC-4-65-12-44 5A-12099
Transmitter:
ConnTelco 5596

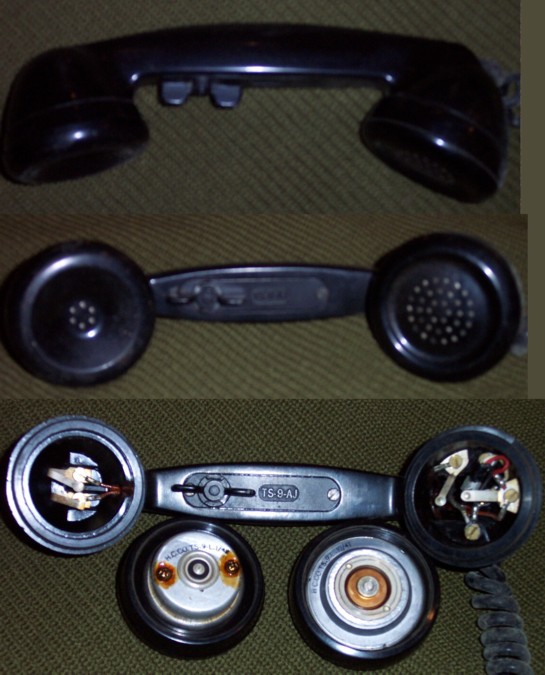

TS-9-AJ
Manufacturer:
H.C.Co
Receiver:
TS-9-L-1/42
Transmitter:
TS-9-L-10/41
Thanks to Gib Buckbee for use of his collection

Created: 12-04-2005
